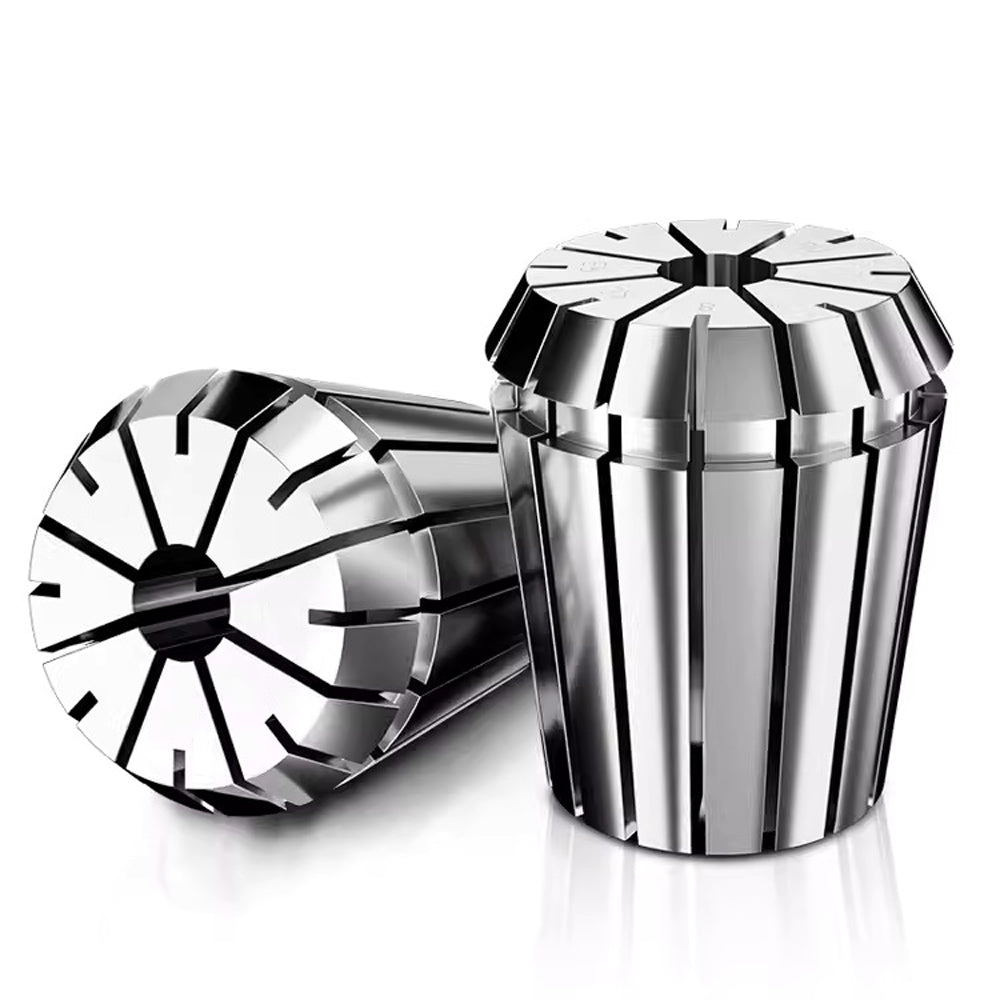

• ER25 High Precision Spring Collet CNC Fixture

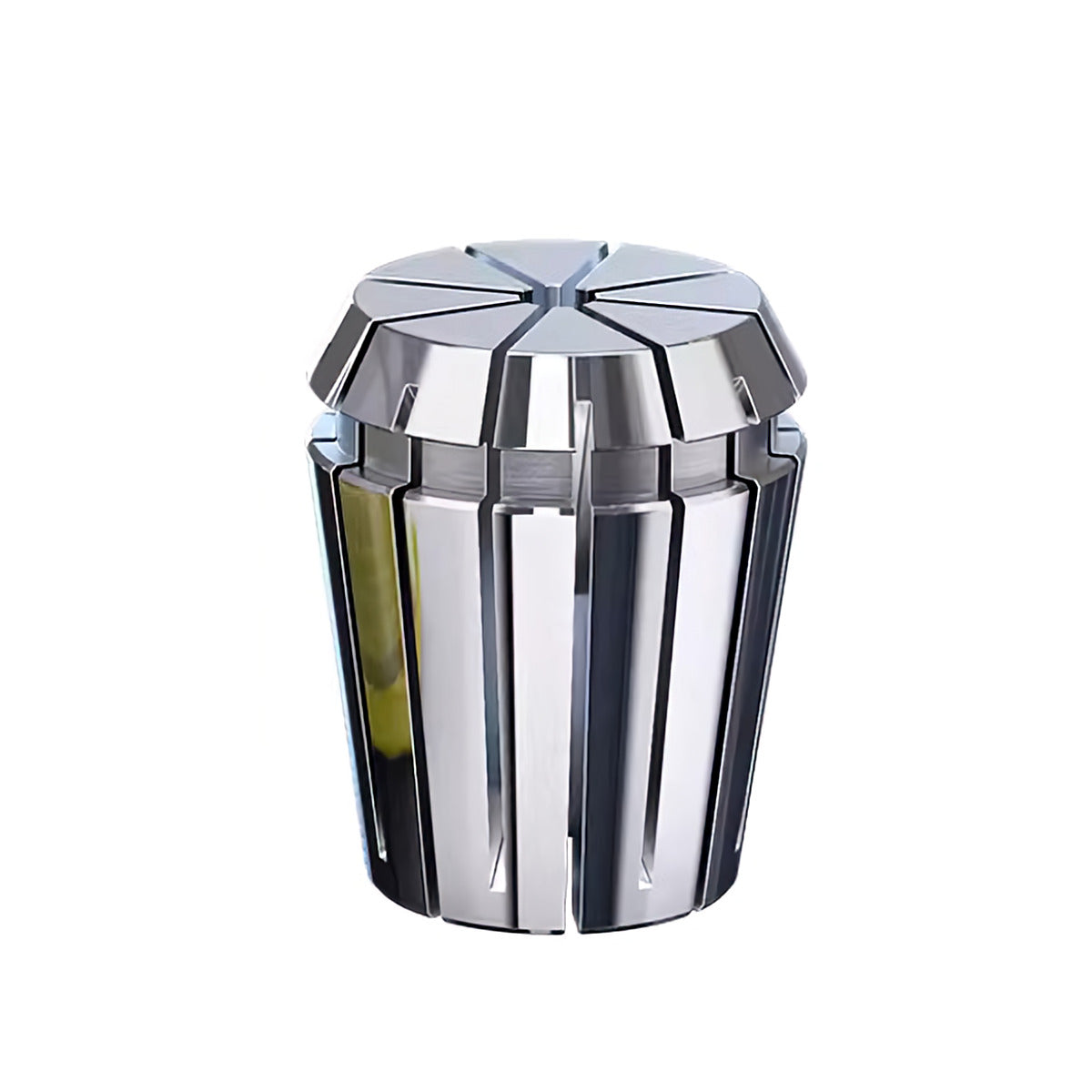

  • Made of 65Mn titanium quenched steel, with high elasticity and high tensile strength, providing excellent gripping and stability during cutting.

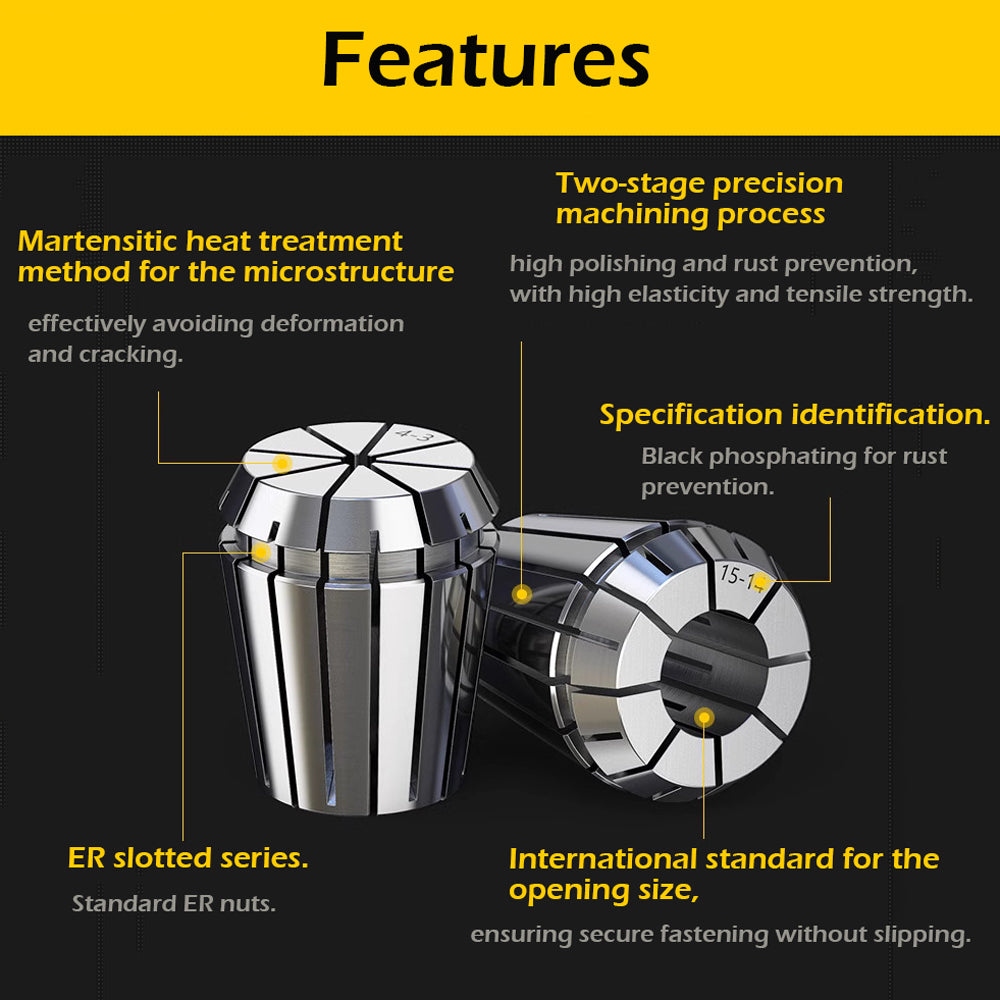

  • Martensitic heat treatment method for the microstructure effectively avoiding deformation and cracking.

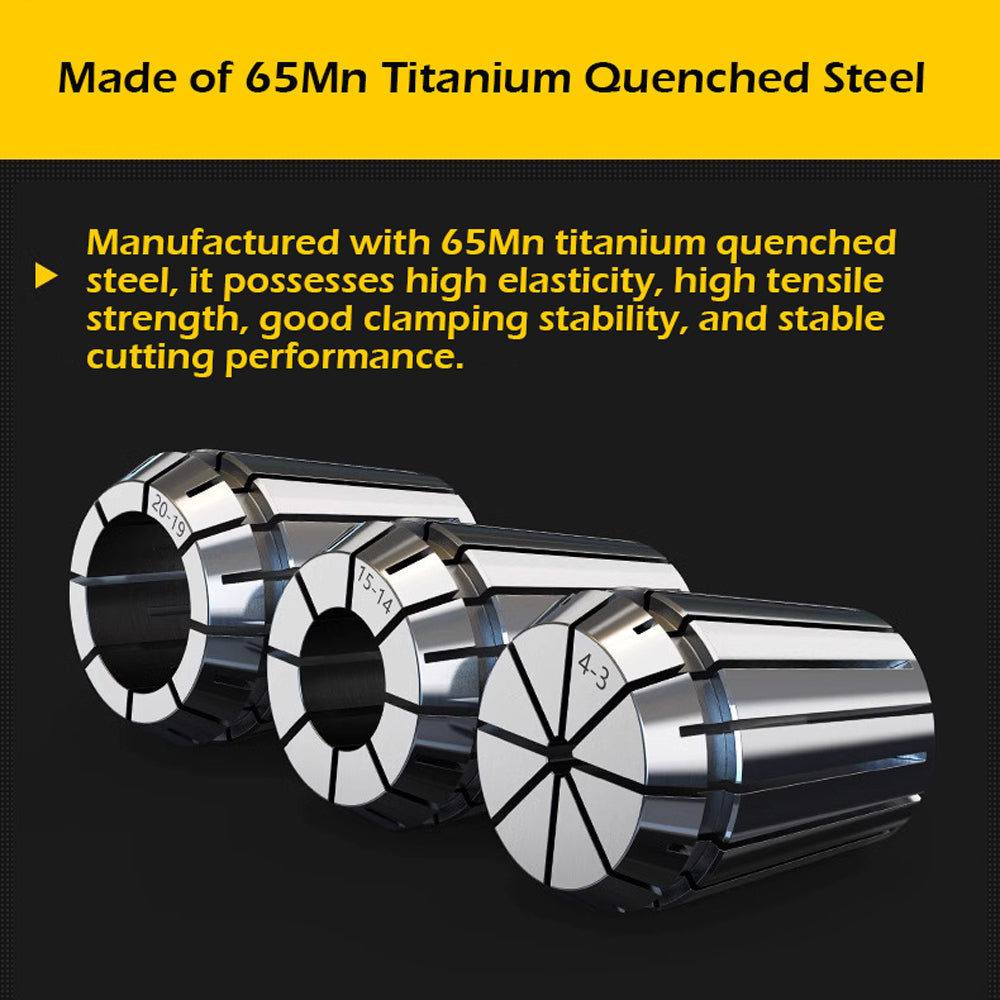

  • Manufactured with 65Mn titanium quenched steel, it possesses high elasticity, high tensile strength, good clamping stability, and stable cutting performance.

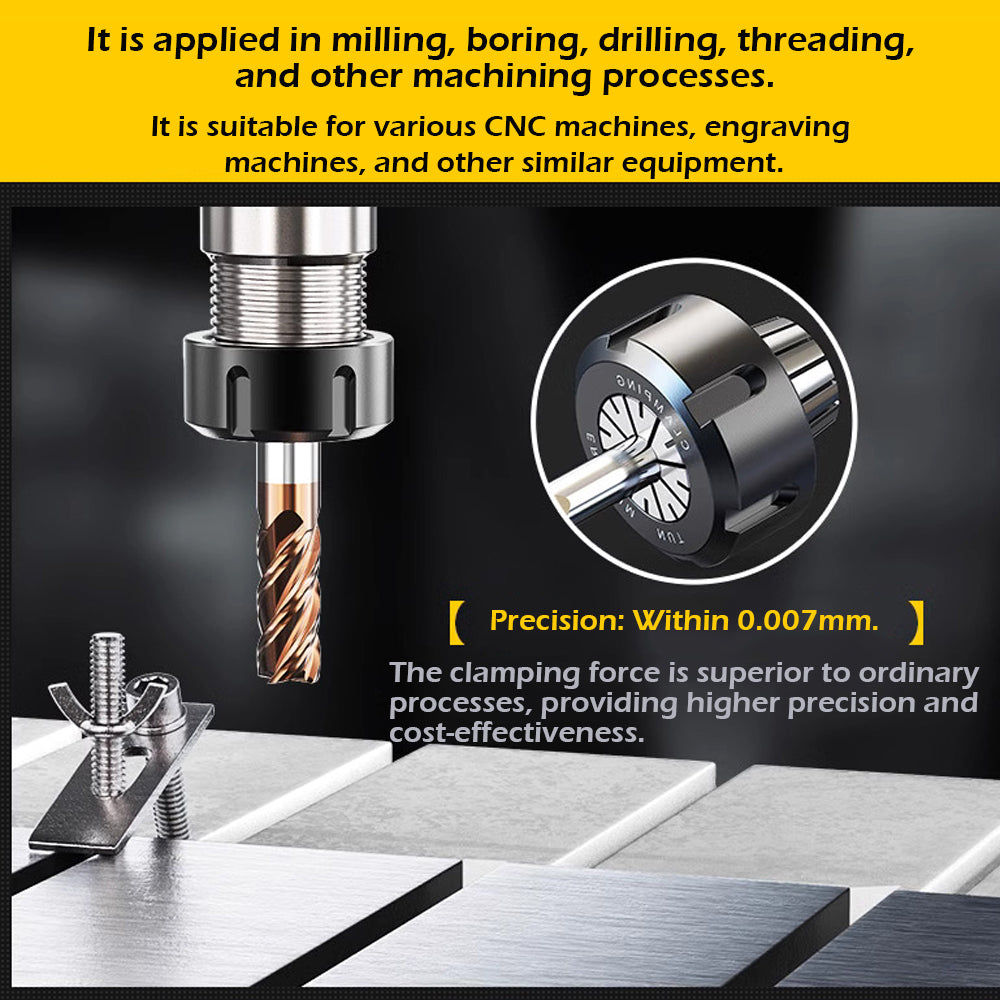

  • Suitable for milling, boring, drilling, and threading operations, suitable for various CNC machines, engraving machines, and other equipment.

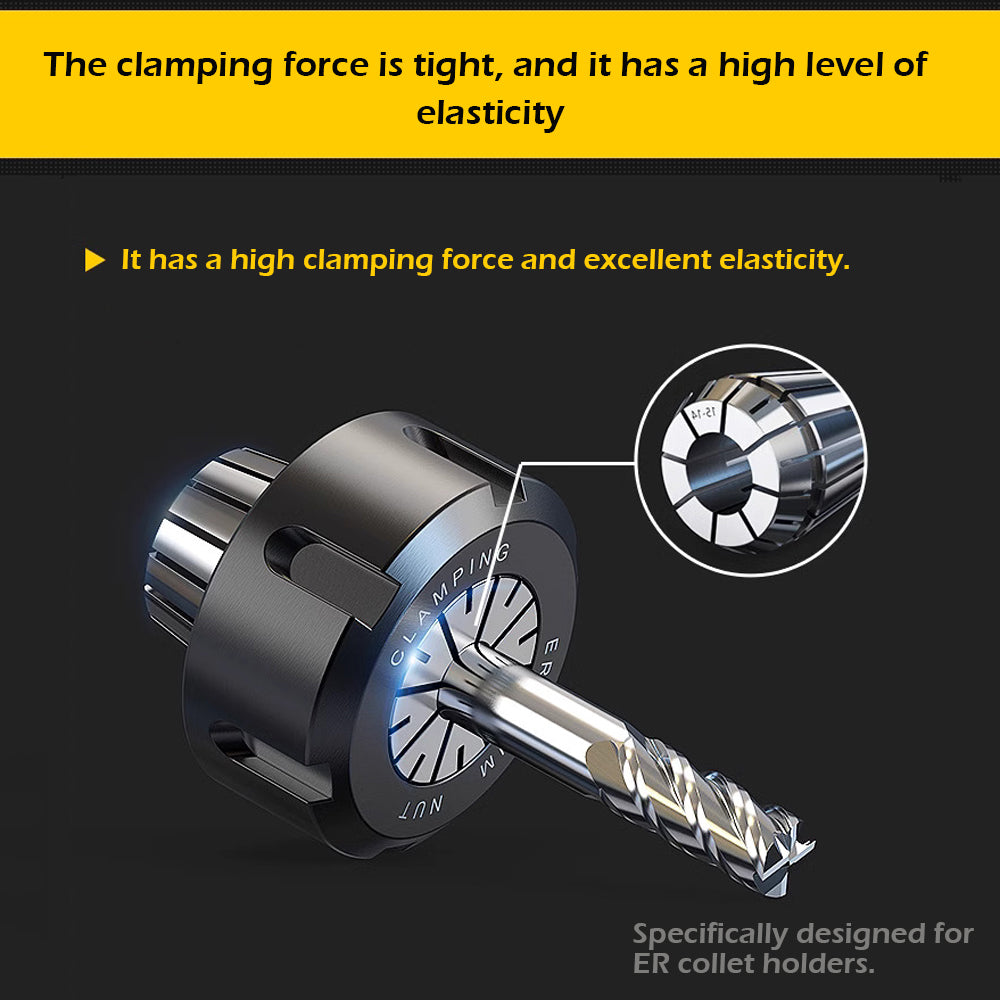

  • The clamping force is superior to ordinary processes, providing higher precision and cost-effectiveness.

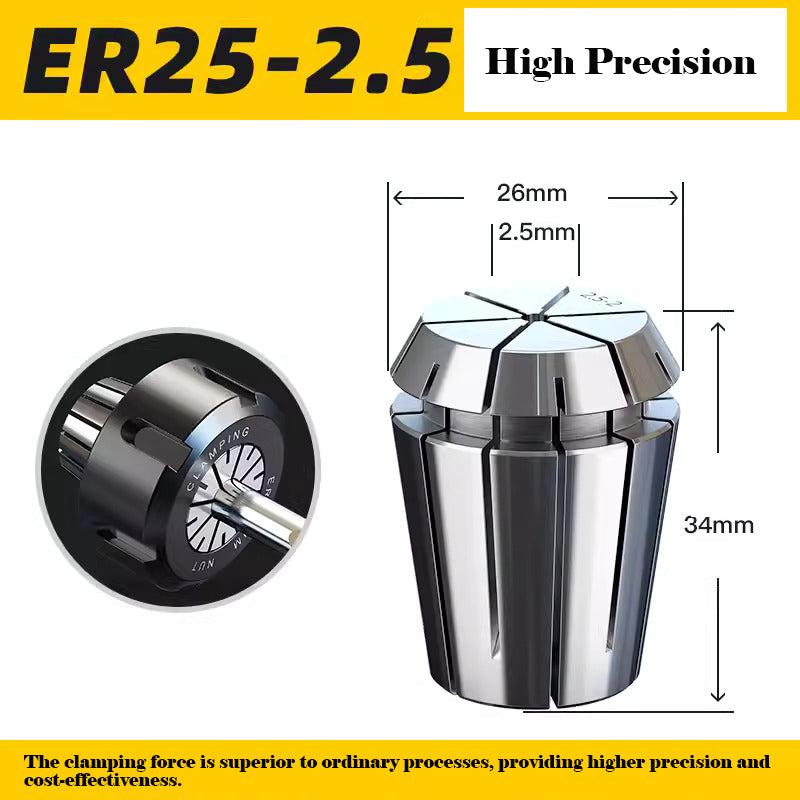

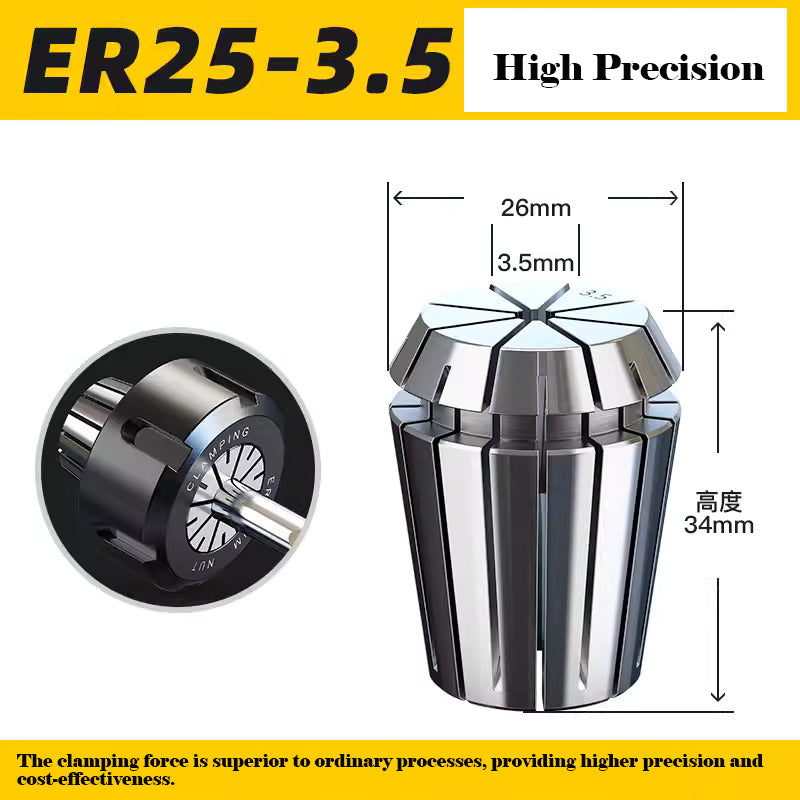

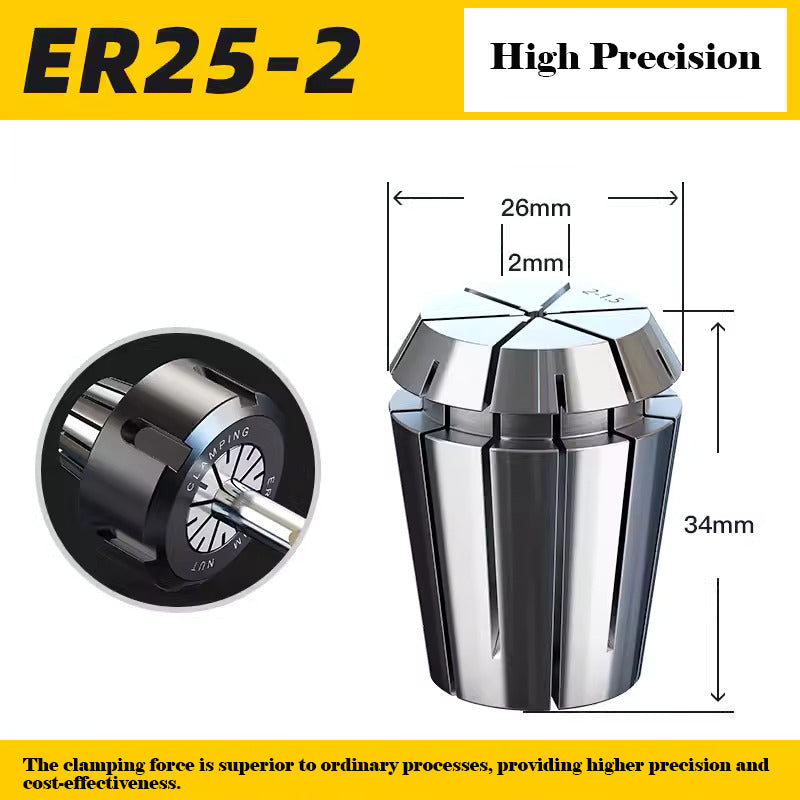

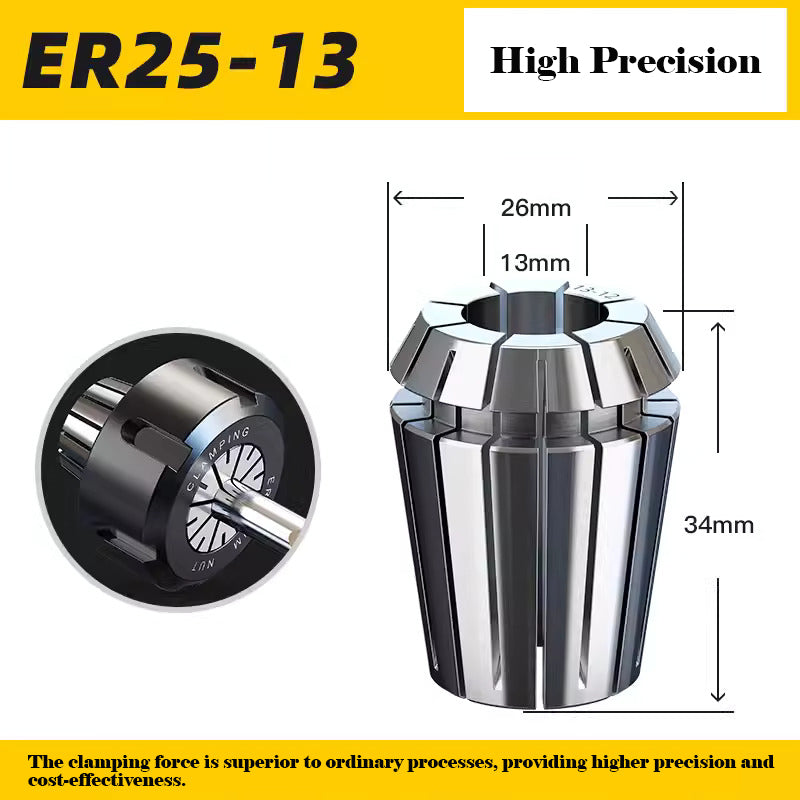

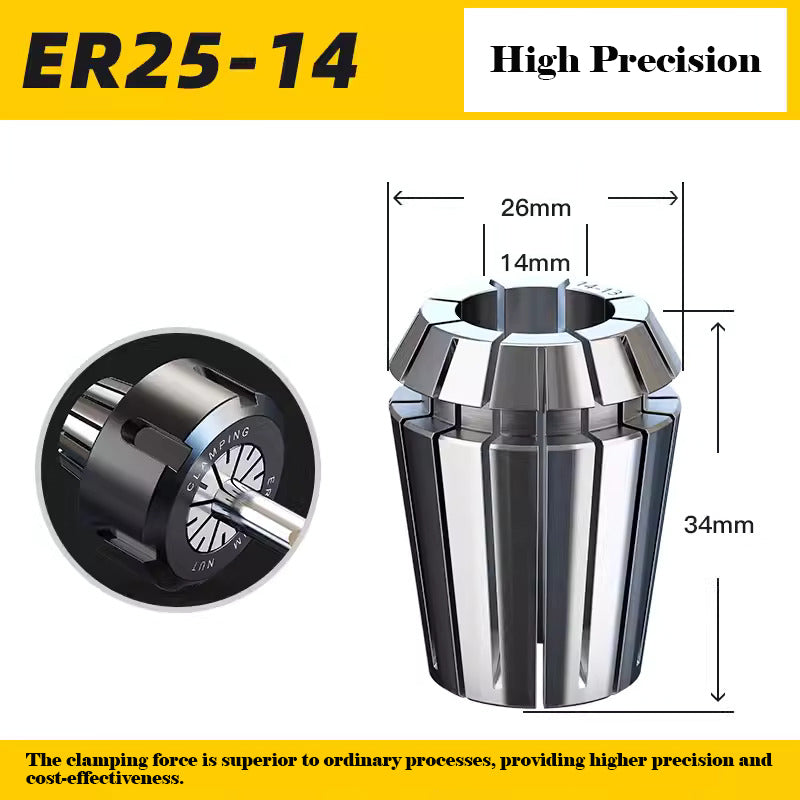

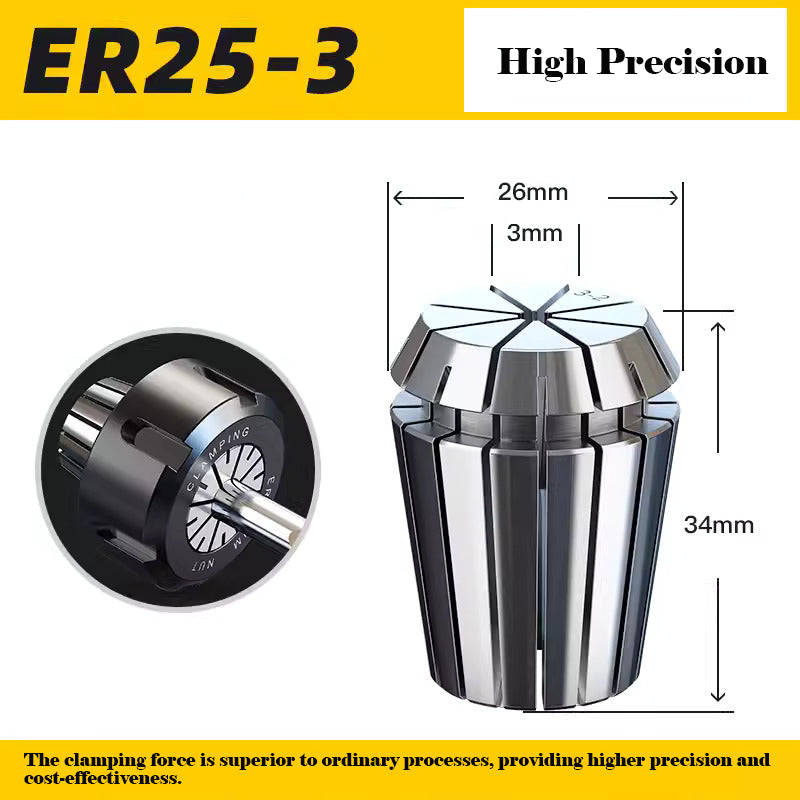

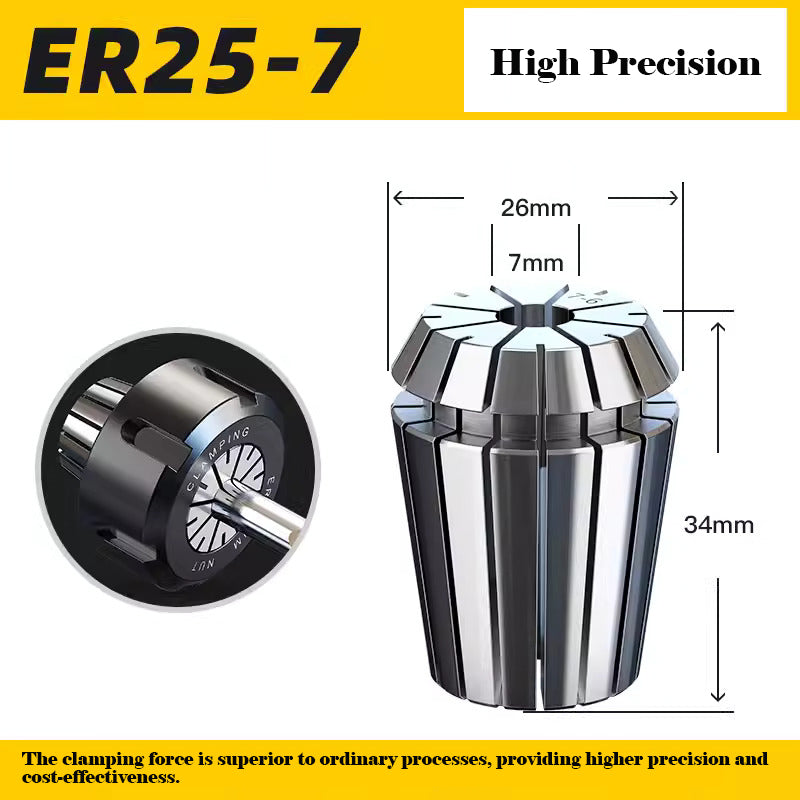

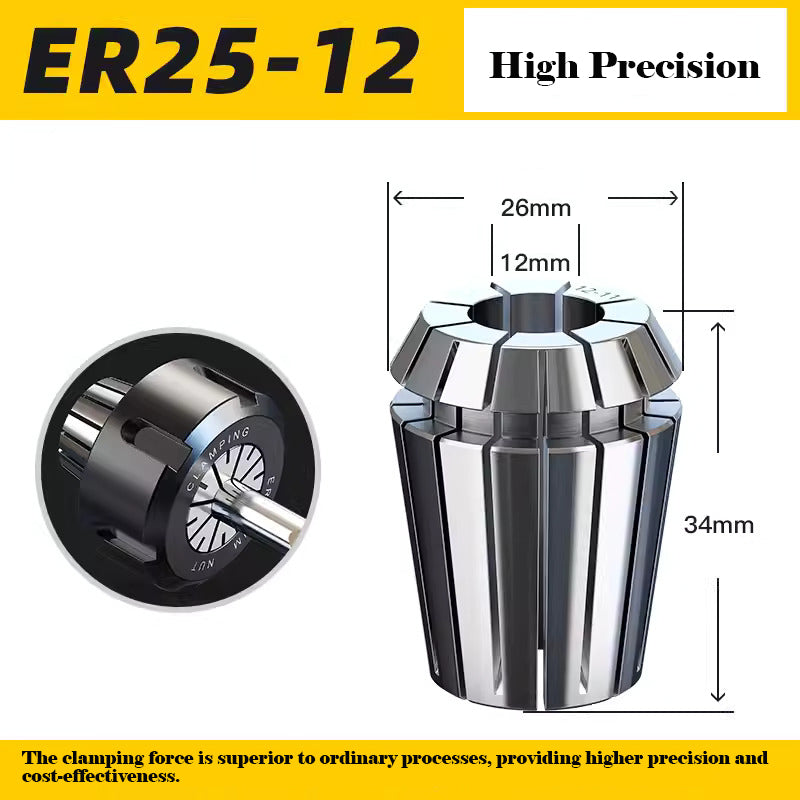

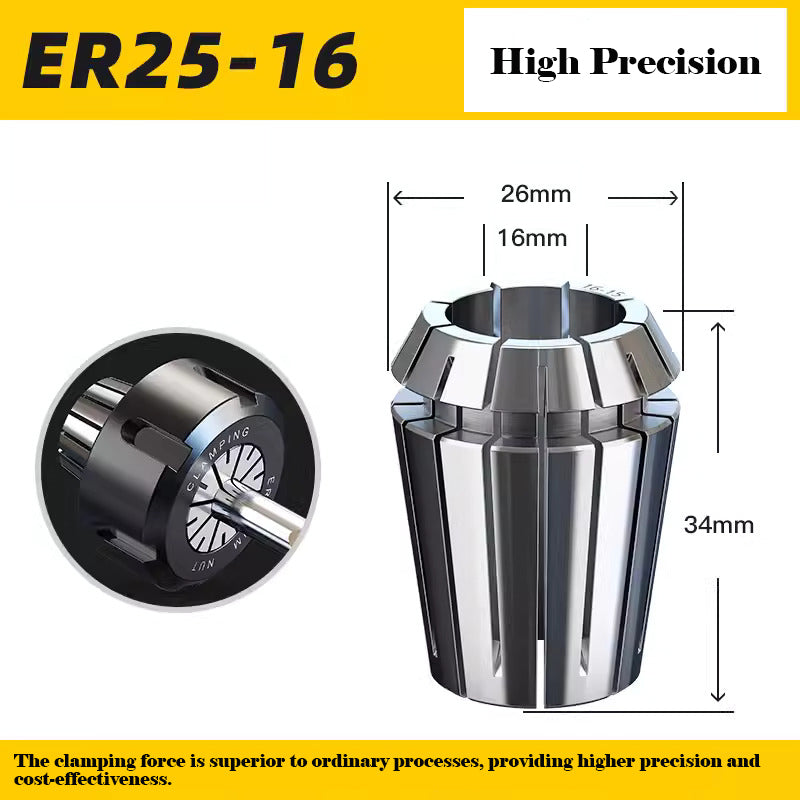

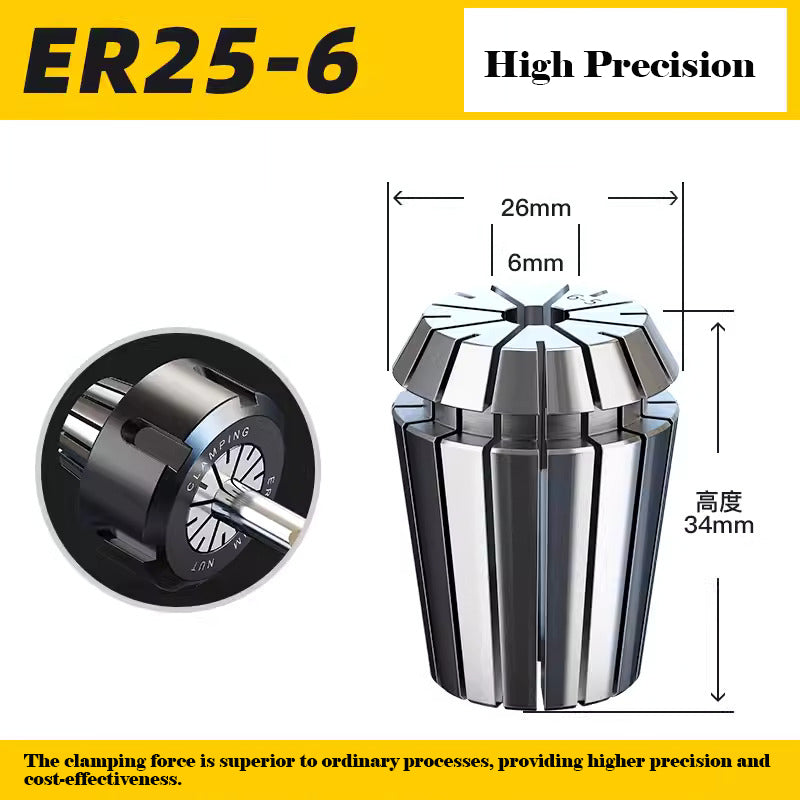

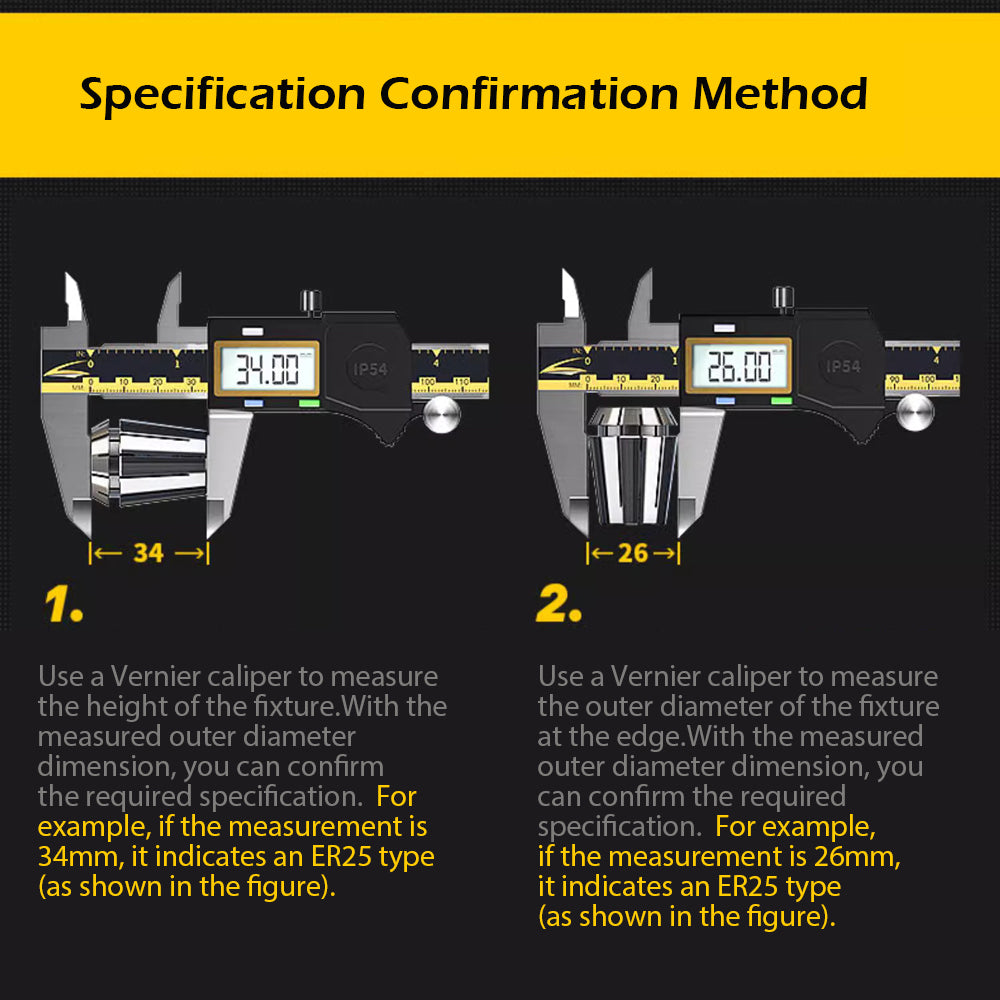

  • Use a Vernier caliper to measure the height of the fixture. With the measured outer diameter dimension, you can confirm the required specification. For example, if the measurement is 34mm, it indicates an ER25 type (as shown in the figure).

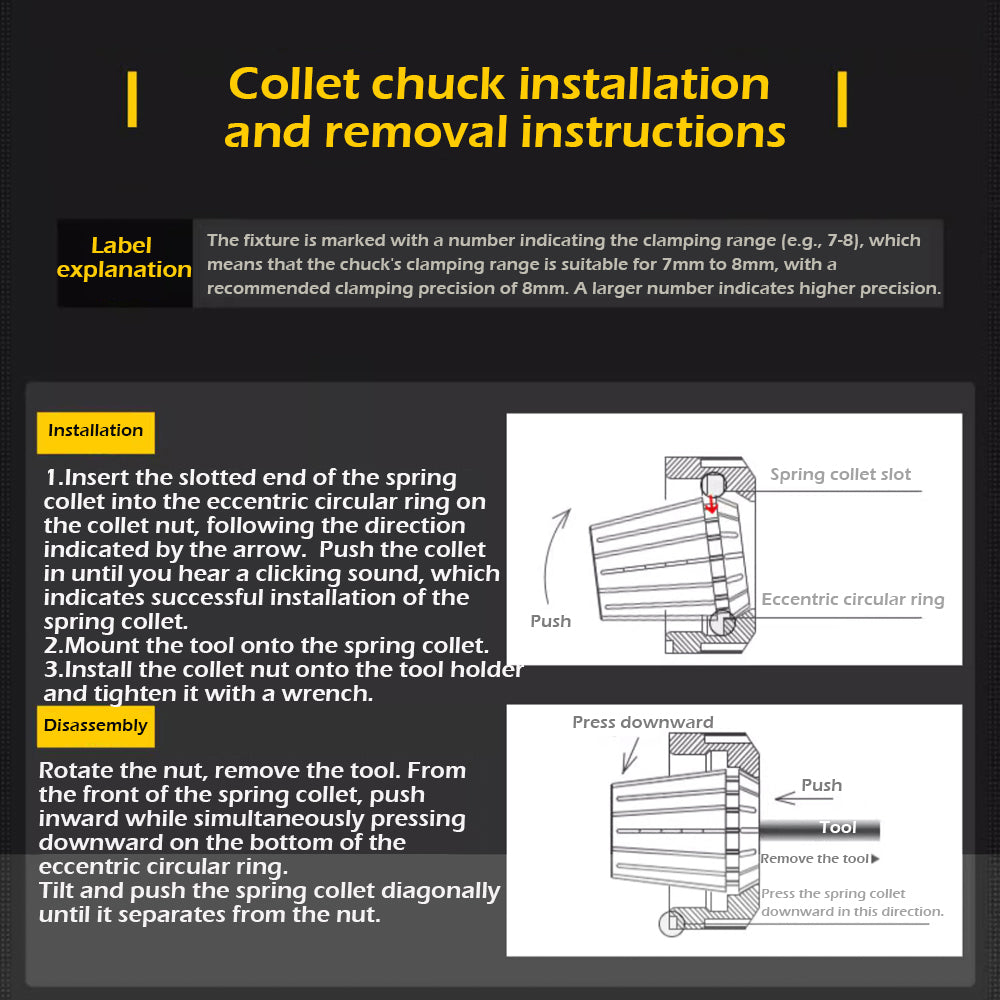

  • 1.Insert the slotted end of the spring collet into the eccentric circular ring on the collet nut, following the direction indicated by the arrow. Push the collet in until you hear a clicking sound, which indicates successful installation of the spring collet. 2.Mount the tool onto the spring collet. 3.Install the collet nut onto the tool holder and tighten it with a wrench.
1 9

RHKINGS

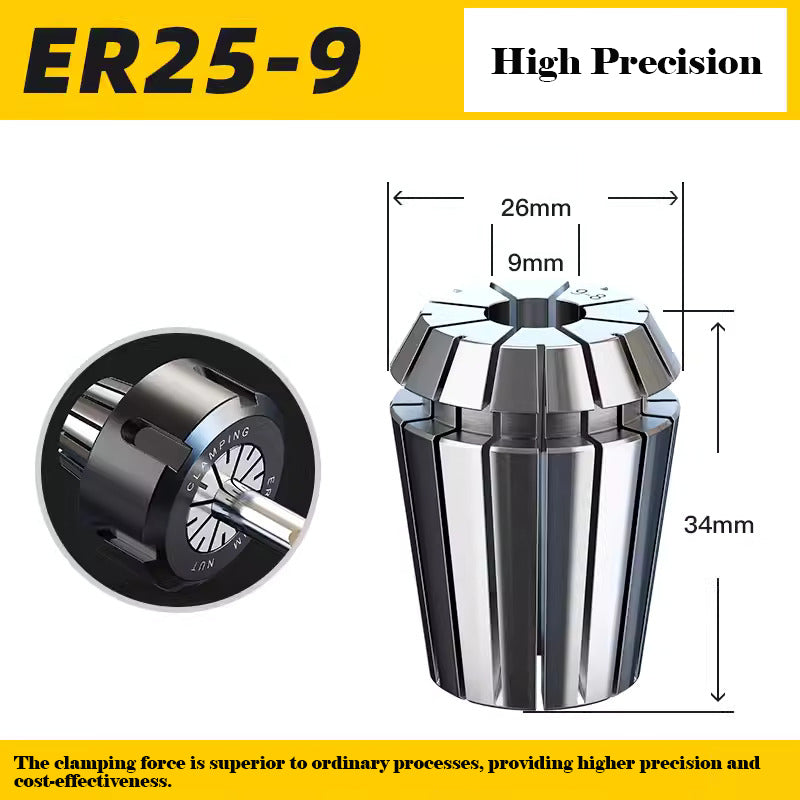

ER25 High Precision Spring Collet CNC Fixture

ER25 High Precision Spring Collet CNC Fixture

$24.39 USD
$34.99 USD $24.39 USD
Sale Sold out
Shipping calculated at checkout.

● Track Order Available

● 30-Day Money Back Guarantee

● We ship via FedEx/DHL/UPS. Delivery usually takes around 3 weeks from the date of your order.

● $4.99 for worldwide shipping or free shipping over $100

Features

1.Made of 65Mn titanium quenched steel, with high elasticity and high tensile strength, providing excellent gripping and stability during cutting.

2.Suitable for milling, boring, drilling, and threading operations, suitable for various CNC machines, engraving machines, and other equipment.

3.Utilizes dual precision machining processes and a highly polished rust-resistant design, ensuring high elasticity and tensile strength.

4.ER collet precision within 0.007mm.

Including

1 PCS ER25 collet
